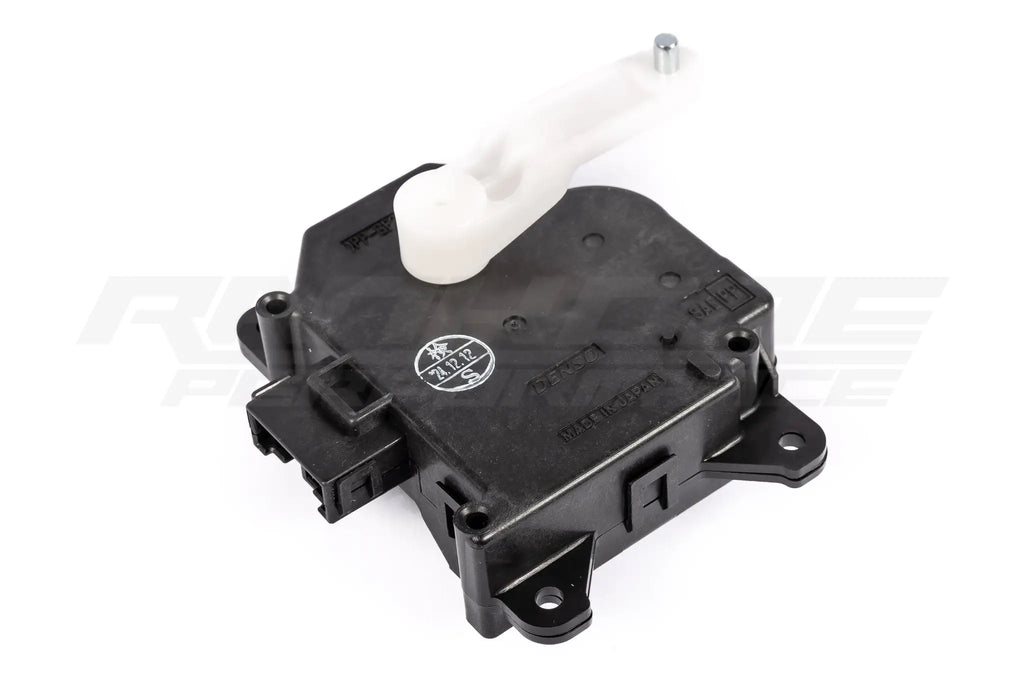

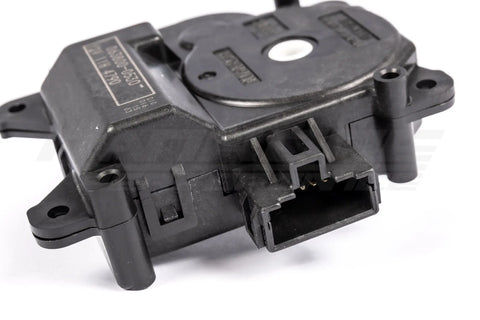

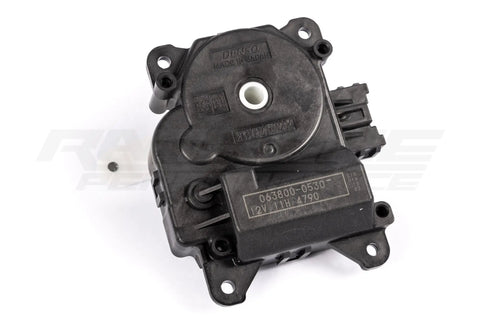

Solve the dreaded clicking in your dashboard and the subsequent not fully operational AC system in your vehicle by replacing the worn/faulty stepper motor/actuators of the flaps routing the AC airflow. This one is for the hot/cold air mix on LHD IS200/300, LHD and RHD SC430, LHD and RHD GS300/430.
Compatible with:
European market
| Model | Model | Frames/options |
| 01/1999-06/2005 | LEXUS IS200/300 | GXE10,JCE10 |
| 05/2001-06/2010 | LEXUS SC430 | UZZ40 |
| 08/1997-12/2004 | LEXUS GS300/430 | JZS160,UZS161 |
US market
| Model | Model | Frames/options |
| 05/2000-06/2005 | LEXUS IS300 | JCE10 |
| 01/2001-06/2010 | LEXUS SC430 | UZZ40 |
| 08/1997-12/2004 | LEXUS GS300/400/430 | JZS160,UZS16* |
Japanese market
| Model | Model | Frames/options |
| 04/2001-06/2010 | LEXUS SC430, TOYOTA SOARER | UZZ40 |
| 05/1998-05/2007 | TOYOTA PROGRES | JCG1* |
| 05/2001-05/2007 | TOYOTA BREVIS | JCG1* |
| 09/1999-05/2007 | TOYOTA CROWN, CROWN MAJESTA | GS171,JKS175,JZS17*,UZS17* |
| 08/1997-12/2004 | TOYOTA ARISTO | JZS16* |
Data courtesy of ToyoDIY
