We've released a new single piece chromoly flywheel for the IS200 in both versions - for standard clutches and for 3S-GTE clutches. Check it out here.

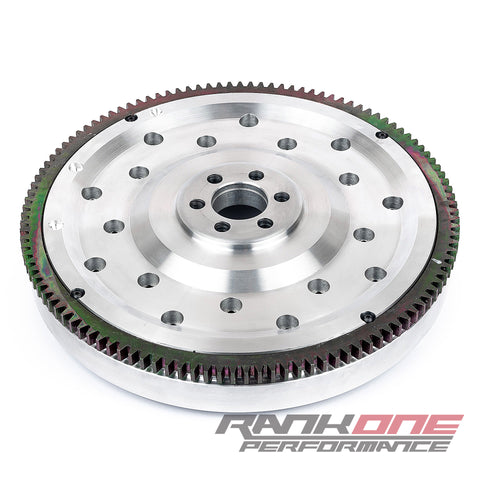

Lexus IS200 / Altezza AS200 solid aluminium lightweight flywheel with a chromoly friction insert, upgraded for use with 3S-GTE clutches
CNC machined out of 6061 grade aluminium these flywheels offer high strength, lifetime zero issue operation and their weight of 7 kg is about half that of the problematic OEM dual mass flywheel. They offer:
- Quicker engine response
- Faster revving
- Less parasitic losses (more power)
- Less clutch wear/longer clutch life
- Better clutch feel
- Much more pleasant experience when driving

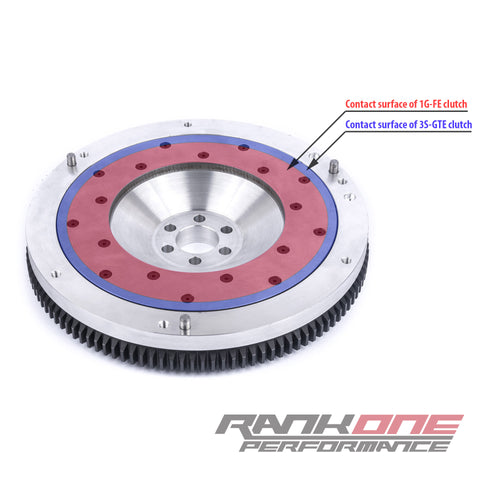

- Drasticly more contact surface and torque holding capability due to using a 3S-GTE clutch
Unlike the dual mass version, these will never fail and even when used for racing purposes with hard ceramic clutches, their friction surface can be serviced cheaply without scrapping the whole flywheel. So in essence it will last forever.
As a bonus, with its drilled aluminium core the flywheel dissipates heat much faster than an original steel dual mass. This allows the clutch to stay cooler and prevent fade and slip under extreme use.
CAD Designed and engineered in the EU, these flywheels are finished to a very high standard, dynamically balanced and ready to bring some life to the 1G-FE engine in the Lexus IS200 and Toyota Altezza AS200 (GXE10).
This upgraded version is designed to be used with 3S-GTE clutches (MR2 Turbo, Celica GT-4) so it's capable of holding drasticly more power from a heavily modified 1G-FE engine. Also great for drifting, clutch kicks and all kinds of abuse. Just use a 3S-GTE pressure plate and friction disc plus the OEM IS200 release bearing (with an added adapter, provided with the flywheel)
Specs:
- 7 kg weight (light, but not too light, unlike some other cheap options)
- 6061 billet aluminium core
- DIN 42CrMo4 / SAE 4140 (Chromoly steel) friction insert
- Precision CNC machined
- Dynamically balanced to a fraction of a gram
- Precision cut chromoly ring gear, surface hardened
- High quality 12.9 grade mounting hardware
- Compatible with manual gearboxes only
- Compatible with the Toyota 1G-FE engine
- Compatible with the 3S-GTE clutches, used with the IS200 release bearing:
- Standard IS200 clutch release bearing OEM P/N 31230-53021
- 3S-GTE pressure plate OEM P/N 31210-20350
- 3S-GTE friction disc OEM P/N 31250-17051

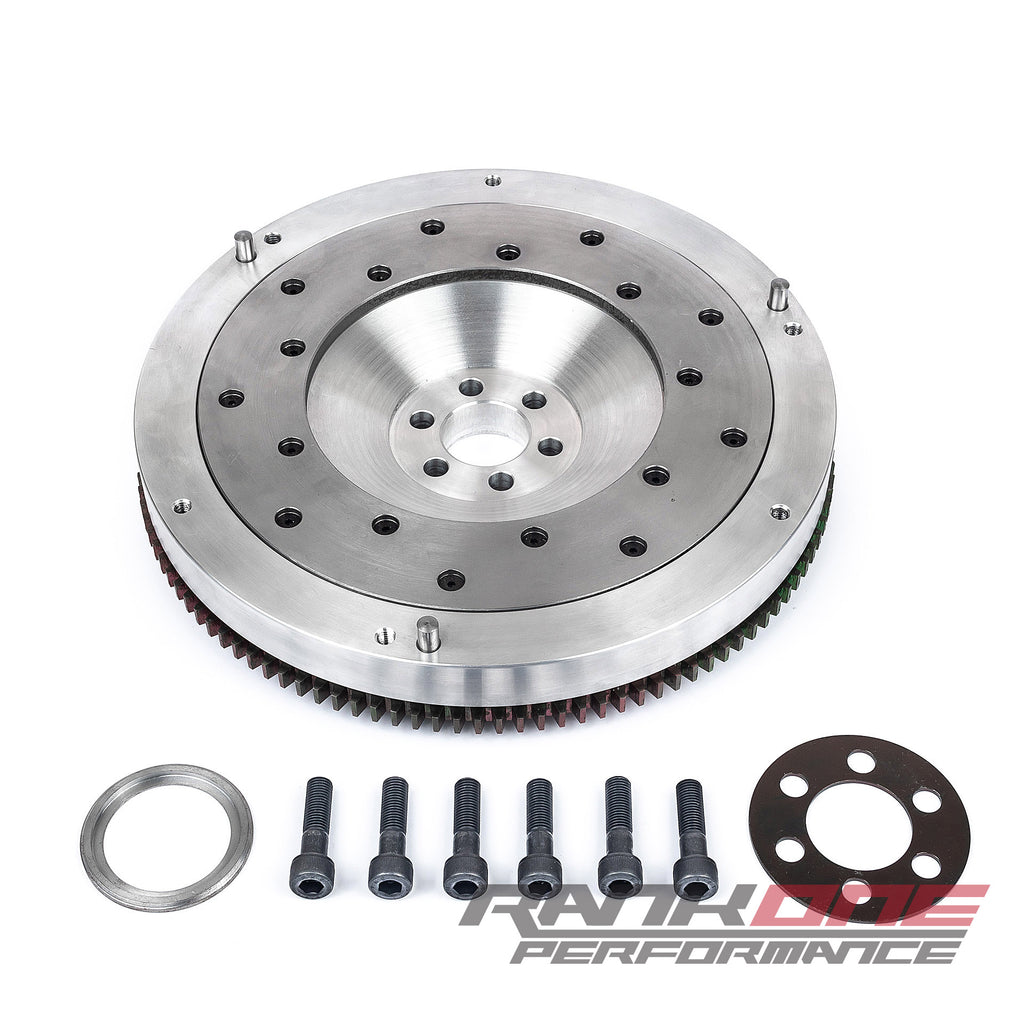

What's included:
- 1x Aluminium flywheel
- 6x 12.9 grade bolts
- 1x IS200 release bearing adapter ring (to match the 3S-GTE pressure plate on all 3S-GTE versions)
- 1x Steel shim (mounted between the flywheel and the bolts)
